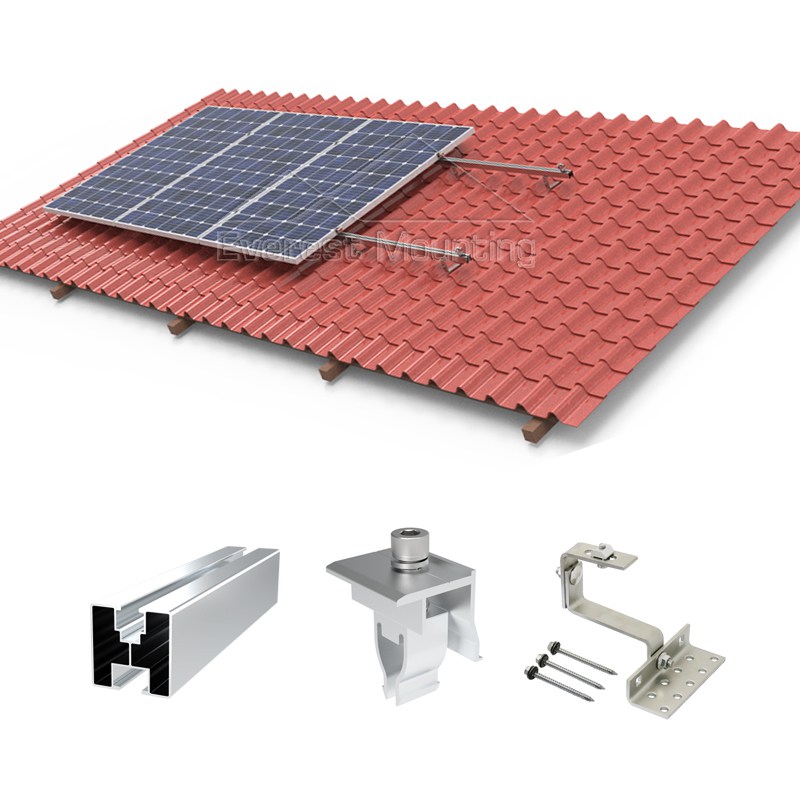

10KW Solar Tile Roof Mounting Bracket Manufacturer

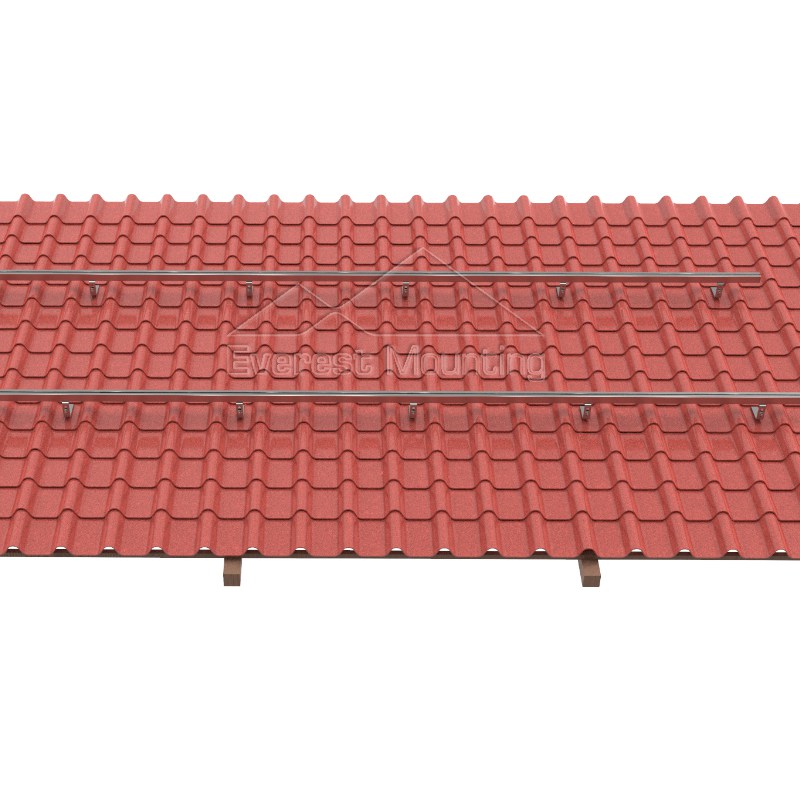

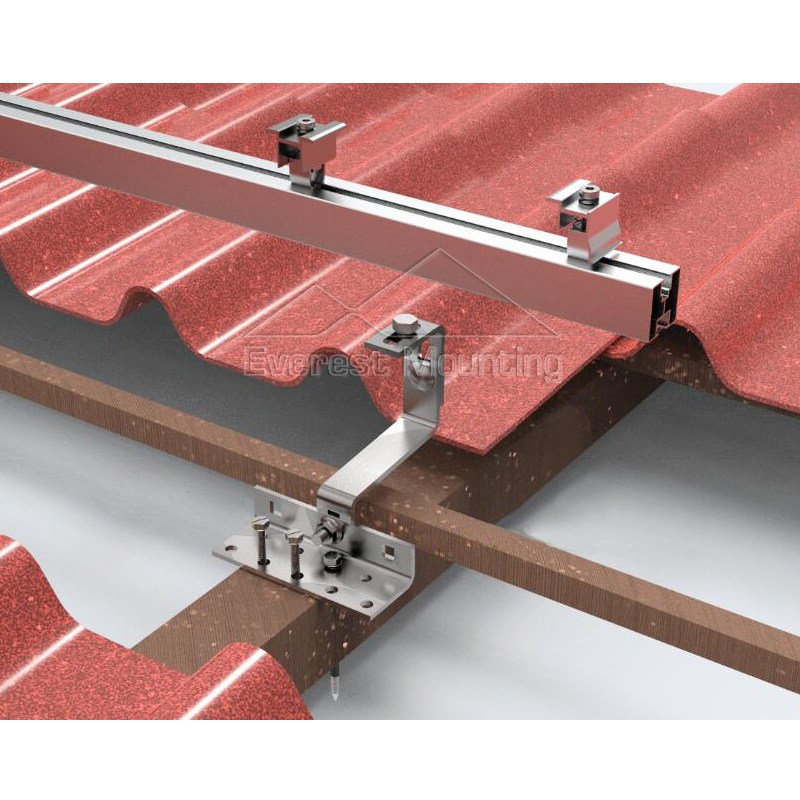

The Solar Tile Roof Racking System can be adapted to all types of tile roofs, including corrugated, Roman, slate and clay tiles. When installed, the hooks are placed under the shingles and secured to the substructure (usually wooden slats), avoiding penetration of the shingles and thus reducing the risk of infiltration during installation.

Specifications:

Advantage:

1.High Adaptability and Compatibility:

Capable of adapting to all kinds of tile roofs, whether ceramic tiles, concrete tiles or metal tiles, it fits perfectly.

Suitable for more than 90% of all types of tile roofs, and can be installed with any size of solar panel.

2.Superior corrosion and weather resistance:

Using high-strength aluminum alloy and corrosion-resistant materials, it has excellent weather resistance and can withstand severe cold, heat and rain, especially suitable for humid, coastal and other harsh environments.

3.Easy and quick installation:

Pre-assembled fittings and innovative connection methods make the installation process simple and quick, greatly reducing labor costs and construction period.

The design of hooks and rails eliminates the need for on-site welding and cutting, ensuring high corrosion resistance and structural strength.

4.Stable and durable, strong wind resistance:

After precise engineering design, it can effectively withstand strong wind pressure and is suitable for coastal areas where typhoons are frequent and highland areas where wind is strong.

5.Aesthetics and Concealed Design:

The bracket is skillfully designed with a simple and generous appearance, hardly affecting the aesthetics of the original roof and ensuring the perfect combination of the overall appearance of the building and the PV system.

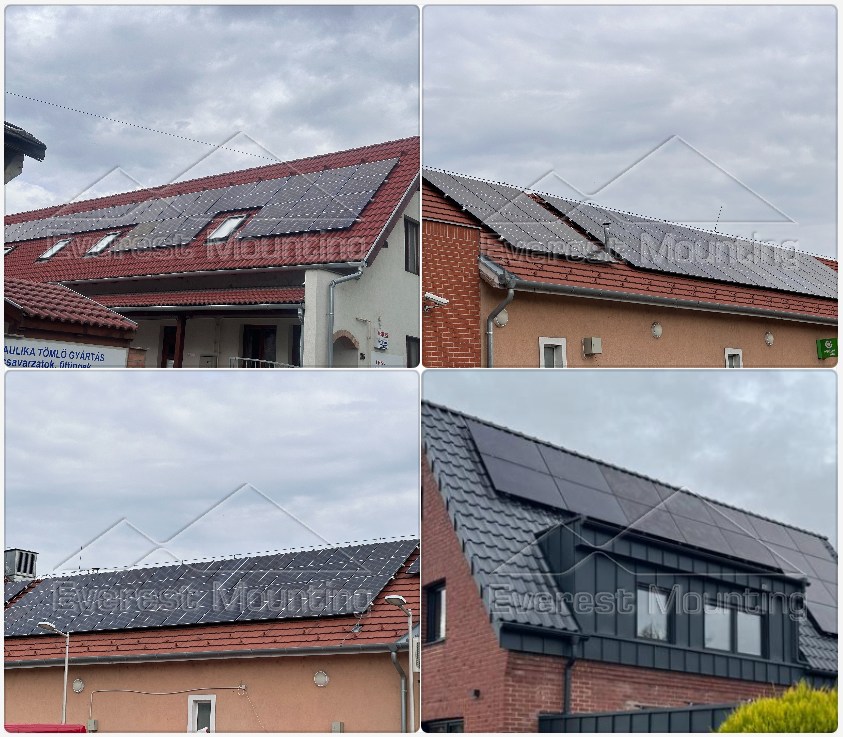

Project:

Solar Roof Mount FAQ:

Q1: Does the Solar Tile Roof Racking System work with all types of tile roofs?

A1: Yes, the system is suitable for more than 90% of all types of shingle roofs, including corrugated, Roman, slate and clay tiles.

Q2: Will shingles be damaged during installation?

A2: No. The hooks are designed to fasten to the substructure underneath the shingle, avoiding penetration of the shingle and reducing the risk of penetration during installation.

Q3: How weather resistant is the Bracket System?

A3: The bracket system is made of high-strength aluminum alloy and corrosion-resistant materials, which has excellent weather resistance and can withstand severe cold, heat and rain, especially suitable for harsh environments such as humid and coastal environments.

Q4: Is the installation process complicated?

A4: No. It is not complicated. Pre-assembled fittings and innovative connection methods make the installation process simple and quick, greatly reducing labor costs and construction period.

Q5: What is the wind resistance of the bracket system?

A5: The bracket system is precision engineered to withstand strong wind pressure and is suitable for coastal areas where typhoons are frequent and highland areas where winds are strong.
